Product Dimensions 9.5"h x 22.5"w x 10.75"d

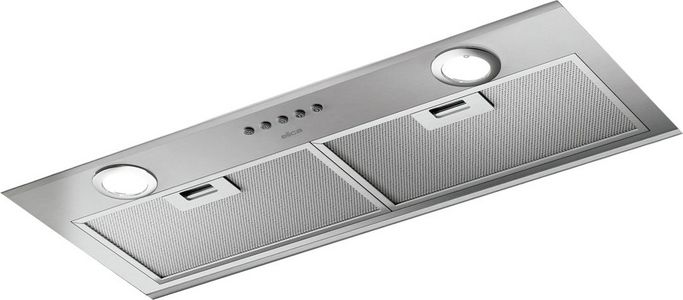

Asti is designed for discreet mounting inside cabinetry, fits perfectly into 12” deep cabinetry and is ideal for kitchens where space is limited or the range hood needs to be out of sight. Asti comes equipped with a powerful 400 CFM blower that can handle most cooking needs. Convenient Backlit Electronic Push Button Controls operate the 3 speed blower and LED lighting, while dishwasher safe anodized aluminum mesh filters offer easy maintenance. Asti is designed for standard ducted or recirculating installation.Read More
View Options
Aluminum mesh filters are steps above competition, featuring triple-layered, anodized aluminum that is woven into a highly dense mesh.
An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.
General Specs | |
Width (in.) | 22.5 |
Height (in.) | 9.5 |
Duct Size (in.) | 6” Round |
Depth (in.) | 10.75 |
Collection | Comfort Series Asti |
Color | Stainless Steel |
Manufacturer Warranty | 3 Year Parts & Labor |
Color Finish Name | Stainless Steel |
Range Hood Type | Insert |
ADA Compliant | No |
ENERGY STAR Certified | No |
Outdoor Approved | No |
Appliance Fit Width (in.) | 22 |
Product Weight (lbs.) | 18.96 |
Smart Compatible | No |
Maximum CFM | 400 |
Bulb Type | LED |
Grease Filter Type | Aluminum Mesh |
Filter Indicator Light | No |
Sones Rating | 0.4 - 5.0 |
Fan Speed Options | 3 |
Vent Location | Top |
Ventilation Direction | Horizontal |
Shipping Depth (in.) | 15.31 |
Shipping Width (in.) | 15.31 |
Shipping Height (in.) | 16.77 |
Voltage | 120 |
Amp | 2.3 |
Frequency | 60 |
Range Hood Features | Light |
Noise Level (Sones) | Standard - (High) |
Ventilation Type | Ducted |
